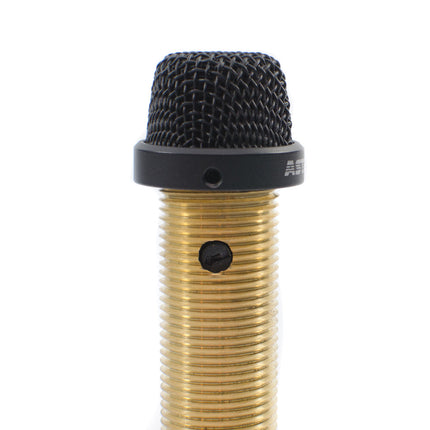

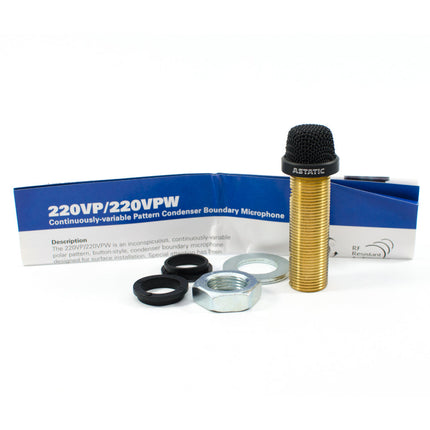

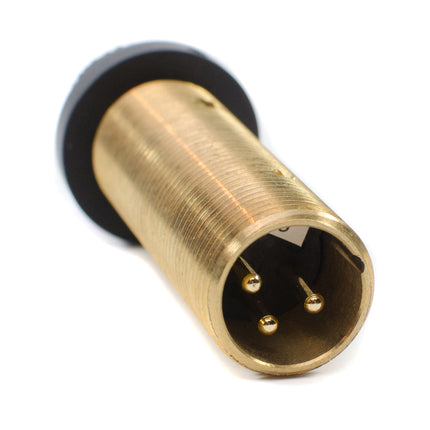

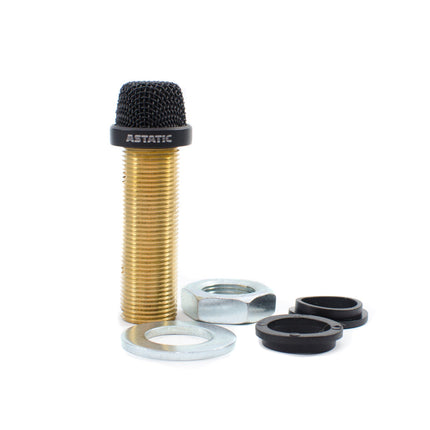

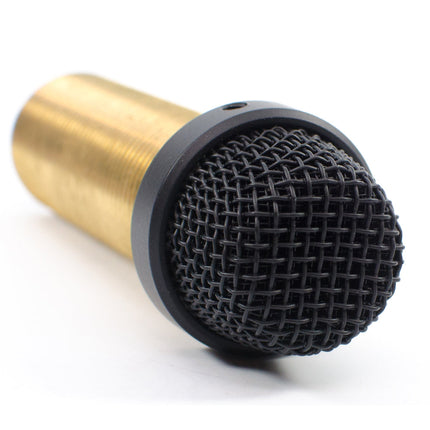

CAD Astatic Variable Polar Pattern Installation Boundary Button Microphone ~ Black

Description

Button-style, condenser boundary microphone designed for surface installation. Resists interference from cell phones, two-way communication, and other RF devices. The integral 80Hz, 12dB/octave high-pass filter removes unwanted low-frequency energy to improve intelligibility. For remote polar control add the VPC-1 or a compatible DSP.

Specifications:
Operating Principal Permanently-Biased Condenser
Polar Pattern Continuously Variable
Frequency Response 90Hz – 17KHz
Sensitivity -32dBV (25 mV) @ 1 Pa
Impedance 125 ohms
Max SPL 120dB
Self Noise 24dBA
Power Requirements P12, P24, P48, 4mA

CAD Astatic Variable Polar Pattern Installation Boundary Button Microphone ~ Black

Product form

Button-style, condenser boundary microphone designed for surface installation. Resists interference from cell phones, two-way communication, and other RF devices. The... Read more

Free pickup in our shop(s)

SKU: 220VP

Excl. Tax: £290.83 GBP
Incl. Tax: £349.00 GBP

    Description

    Button-style, condenser boundary microphone designed for surface installation. Resists interference from cell phones, two-way communication, and other RF devices. The integral 80Hz, 12dB/octave high-pass filter removes unwanted low-frequency energy to improve intelligibility. For remote polar control add the VPC-1 or a compatible DSP.

    Specifications:
    Operating Principal Permanently-Biased Condenser
    Polar Pattern Continuously Variable
    Frequency Response 90Hz – 17KHz
    Sensitivity -32dBV (25 mV) @ 1 Pa
    Impedance 125 ohms
    Max SPL 120dB
    Self Noise 24dBA
    Power Requirements P12, P24, P48, 4mA
