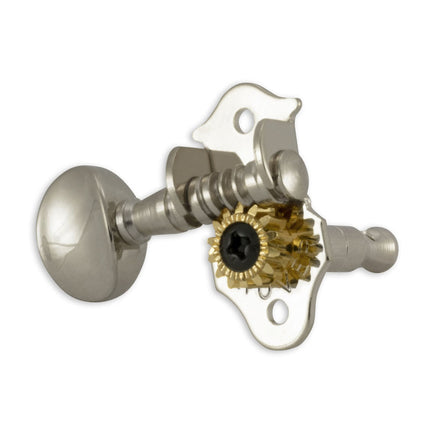

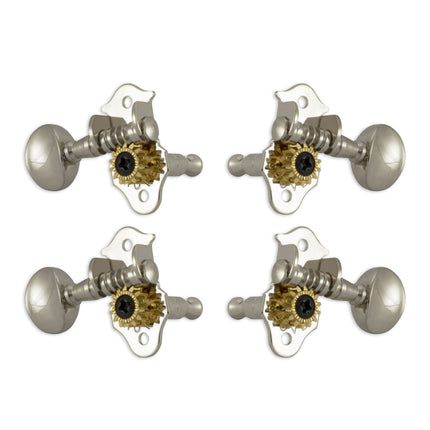

The #8 Series is engineered with the same one-piece stamped base plate, brass gear, die-cast button and knurled bushings used on the Sta-Tite™ guitar machine head. The string post length has been shortened to 1″ with the string hole .775” from the back of the base.
• Open gears
• 14:1 gear ratio
• 23/64” post hole
• Post length to hole: 20mm
• Overall post length: 25.3mm
• Weight per pc/per set: .9oz/3.6oz
• Max. string gauge: .064”
• Hardware included (bushings, screws)
For detailed specifications and/or fitting guides please locate this item on the Grover website where they offer more detailed information.
