Description

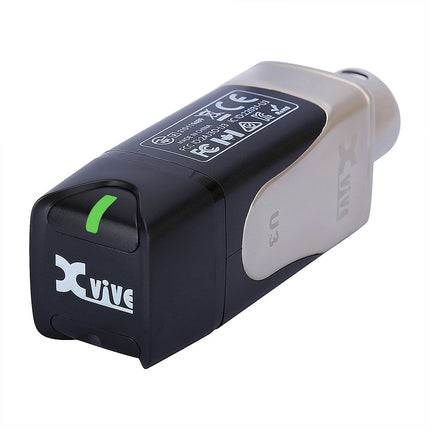

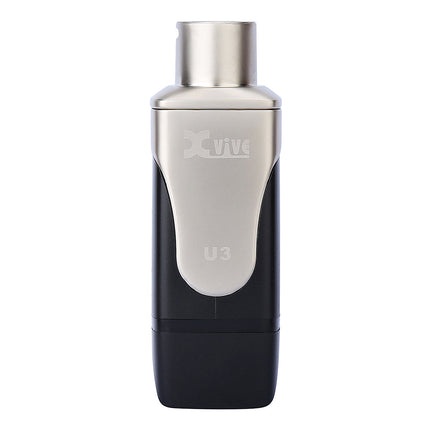

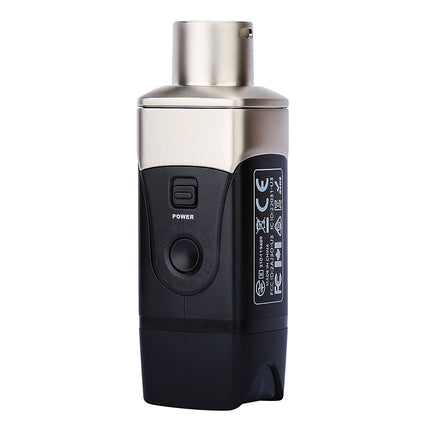

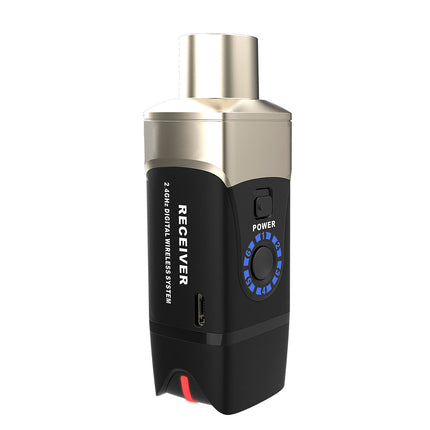

The Xvive U3R Receiver is designed for use with either the Xvive U3 Dynamic Microphone Wireless System or the U3C Condenser Microphone Wireless System.
It can be used as a replacement or backup receiver, or it can expand a U3/U3C system!

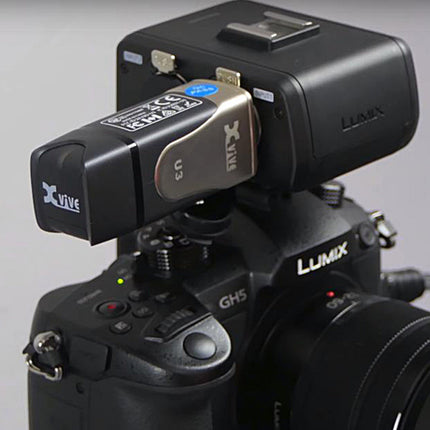

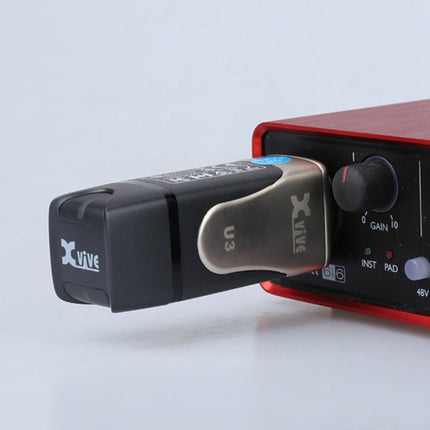

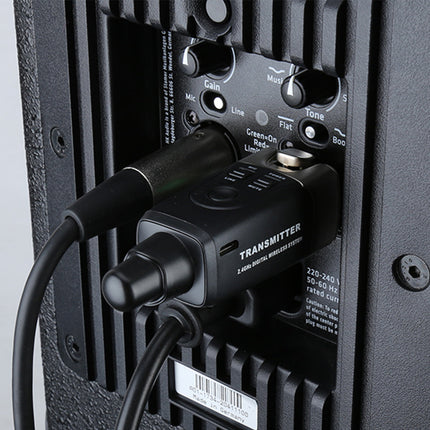

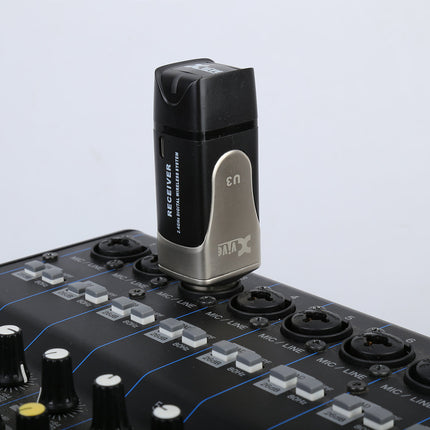

Having two receivers connected to one U3T transmitter allows you to send a microphone signal wirelessly to two separate destinations—for example, a mixer and an audio recorder, or two powered monitors.
Note that when two U3R receivers are connected to one U3T transmitter, all three units must be set to the same wireless channel.
Specifications
WIRELESS TYPE: 2.4 GHz ISM worldwide open band
BIT DEPTH / SAMPLE RATE: 24-bit / 48 kHz
SWITCHABLE CHANNELS: 6
SIMULTANEOUS CHANNELS: 6
FREQUENCY RESPONSE: 20 Hz – 20 kHz (-3dB)
DYNAMIC RANGE: 110 dB (-3 dB)
SIGNAL-TO-NOISE RATIO: 110 dB
TOTAL HARMONIC DISTORTION: 0.2%
LATENCY: 5 ms

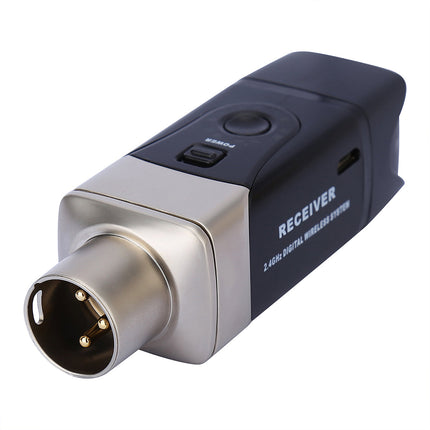

CONNECTOR: XLR (male)
DIMENSIONS: 98 x 31 x 29 mm / 3.9" x 1.2" x 1.1"
WEIGHT: 92 g / 3.2 oz
